Glass Opti-Myst Heater Disk Transducer M-011B M011B compatible with Dimplex Electric Wall Fire

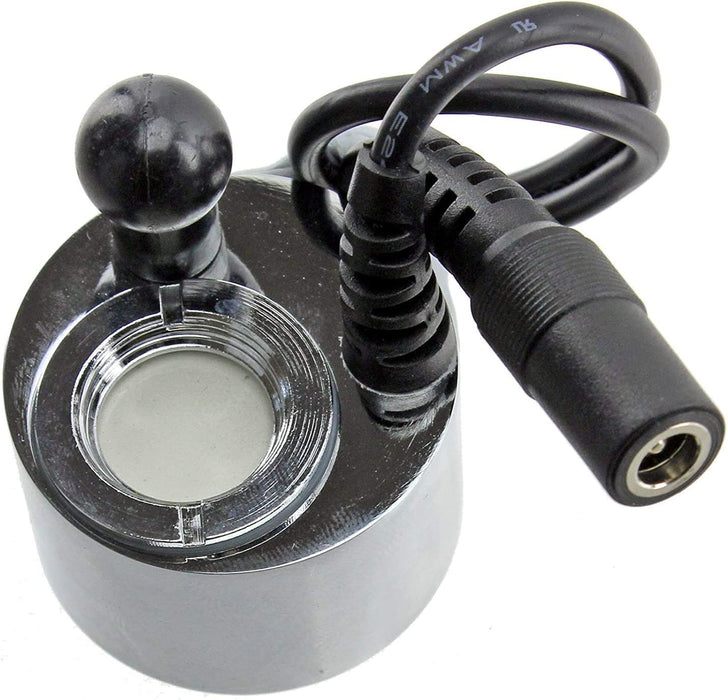

'Ultransmit' Glass Disk Transducer for Dimplex Opti-Myst Electric Wall Fire

Brand new, compatible replacement glass disk 'Ultransmit' transducer unit for your Dimplex electric wall fire.

Specifications: Ultransmit M-011B MFD 201312 DC24V 500mA or M011B-1C A3 4414 #CHM4312.

Pack contains: 1 x transducer unit - complete with 1 x glass disk (ready for use)

Fits models:


Mansfield MAN20, Mansfield MAN20, Mansfield MAN20, Alameda ALM20, Auberry AUB20, Burbank BBK20, Burgate BRG20, CAS400, CAS400HLL, CAS600, CAS600, Danville DNV20, Danville DNV20, Danville DNV20, Danville DNV20, ENG56-400 56/400, ENG600BR 56/600, Gosford GOS20, Indulgence Optimyst, Mansfield MAN20, Mansfield MAN20, Moorefield, Meribel MRB20, Oakhurst OKT20, OMMOD400, OMMOD400NH, OMWFC20, Pemberley PEM20, Redway RDY20, Rothesay RSY20, RTOPCS20, RTOPI20, RTOPI20, RTOPSTV20, RTOPSTV20, RTOPSTV20, RTOPSTV20, RTOPW20, Sacramento SCR20, Silverton SVT20, Tahoe TAH20, Westbrook WBK20, Whitmore WMR20.

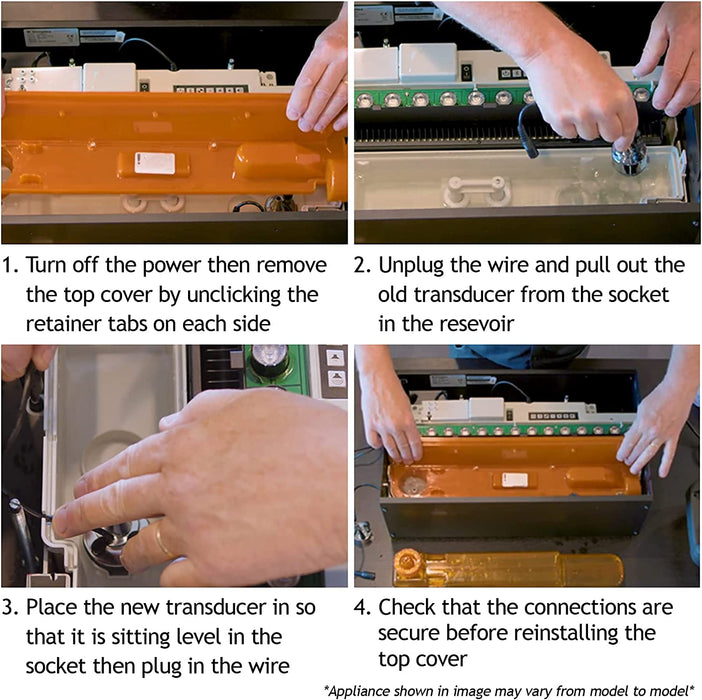

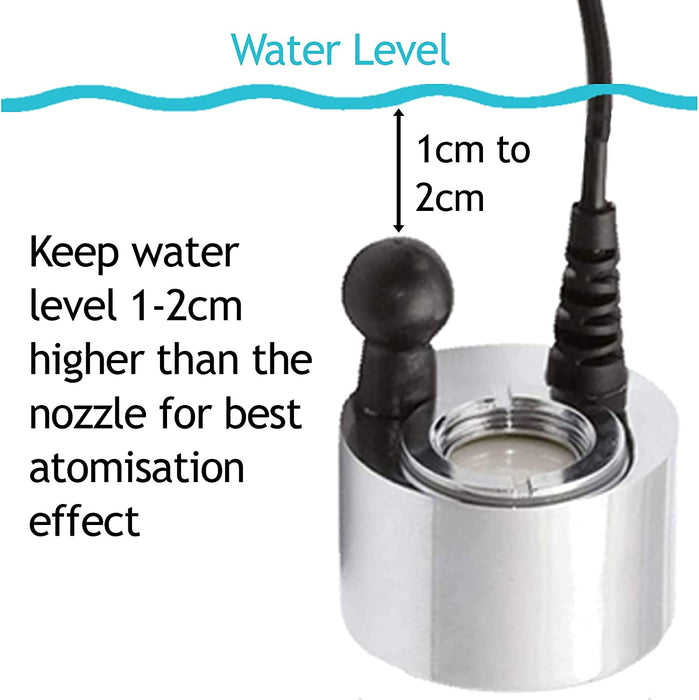

Please note: replacement of your transducer may be required if no mist is being produced, or if the fire cuts off after 30 seconds. There are several other components which may also contribute to lack of mist, or premature cutting out - such as a faulty sump fan unit, a build-up of calcium deposits, insufficient / incorrect water level in the tank, faulty lamps, damage to the mist nozzle or incorrect fitting of the transducer.

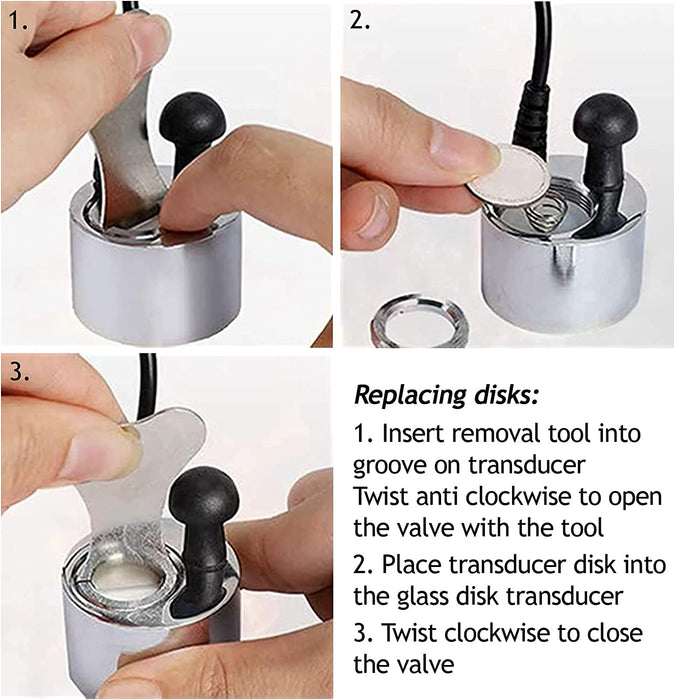

Therefore, repairs should always be carried out by a suitably qualified or competent engineer. The approximate life-span of this transducer is 1000 hours. Replacement discs and / or removal tool must be bought separately. Spare discs not included.

PLEASE NOTE: this product is not manufactured by Dimplex, but it is designed to be compatible with Dimplex machines. The Dimplex name, model names and any part numbers have been used for reference purposes only and are in no way associated with the original manufacturer.
