Boiler Circulation Pump for IDEAL BAXI POTTERTON VAILLANT 15-50 15-60 ECO 130mm
Complete Central Heating Circulation Pump & Head Kit
Brand new, high-efficiency permanent magnet canned-motor central heating pump, for circulation of the primary water in a domestic heating system. Equipped with a differential pressure controller, this continuously (when in auto setting) adjusts its power input according to system load, to match the pump power to the system requirement - saving energy. Alternatively, if required the installer or user can set the pump on a constant speed setting, between Min-Max levels (5W to 40W).
Easy installation and start-up, provided with self-adaptive mode AUTO initial setting. In most case, the motor pump needs no adjustment and can be readily started and automatically adjusted to meet the actual needs of the systems.
Features:
Easy installation and start-up
Standard fit - 130mm between ports
Low energy consumption
Low noise - sound pressure level (lower than 42dB(A))
ERP Compliant
Auto-adapts 5-40W
Max head height: 15-50 / 15-60 (6 metres)
Suitable for domestic heating systems
Proportional Pressure Control setting
Constant Pressure Control setting
No external protection needed for pump

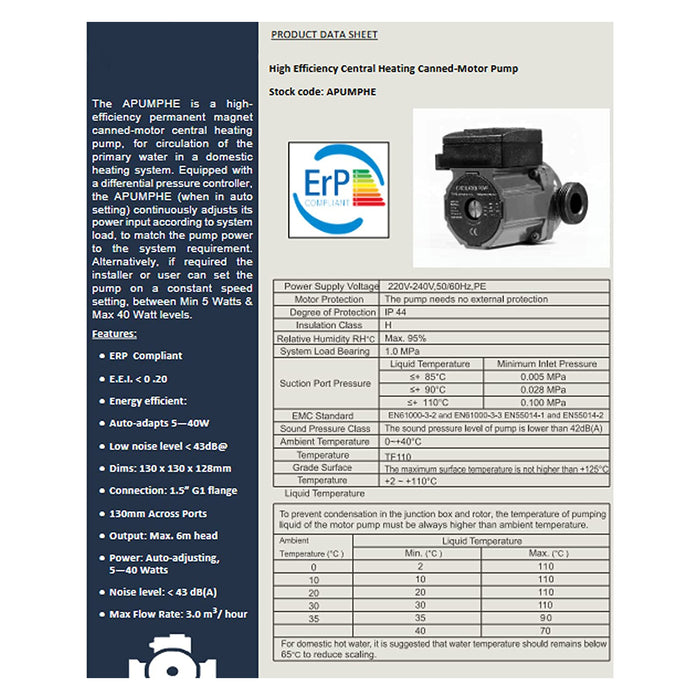

Specification:
Dimensions: 130 x 130 x 128mm
Connection: 1.5" G1 (BSP) threaded flange
130mm Across Ports
Output: Max. 6m head
Max Flow Rate: 3.0 L³/ hour
Power: Auto-adjusting, 5-45 Watts
Noise level: < 43 dB(A)
Max Flow Rate: 3 cubic Ltrs/hour
ERP Compliant
BSI ISO 9001:2015 Cert no: RS30178 QR057
E.E.I. < 0 .20

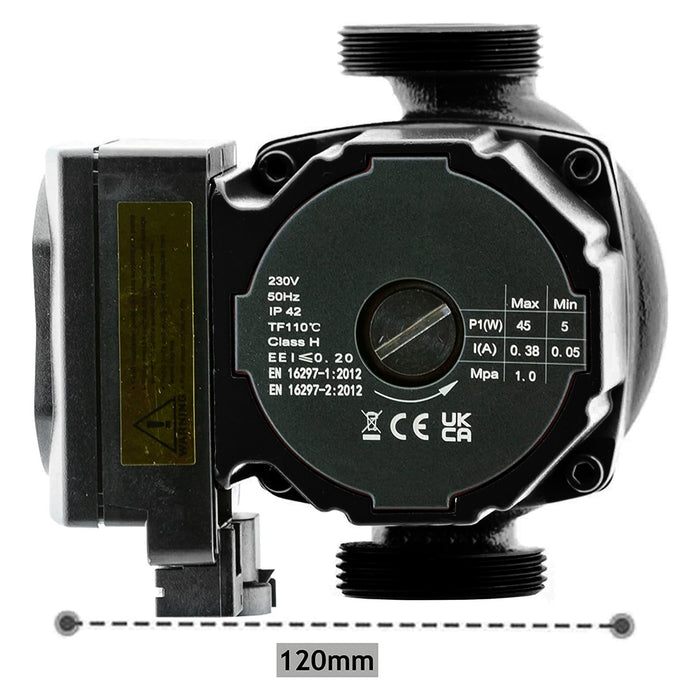

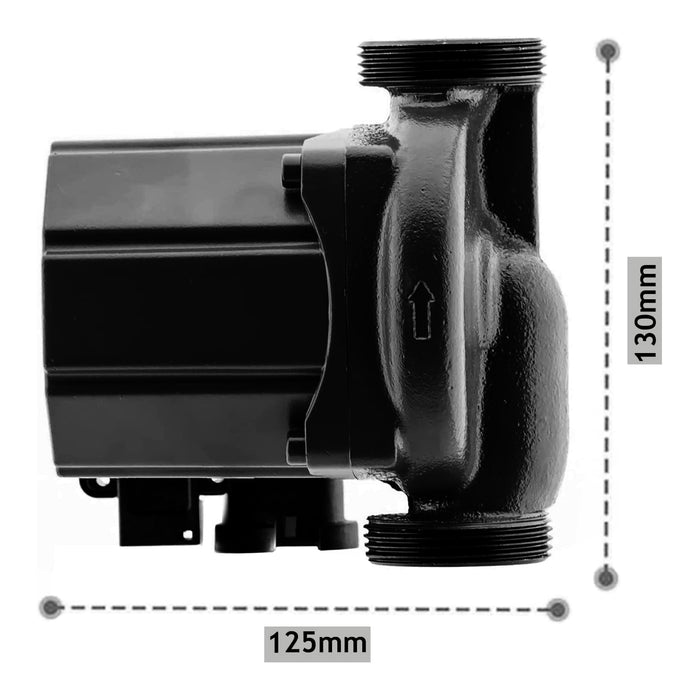

Dimensions:
125mm (Approx') x 130mm (Approx') x 120mm (Approx')
Fits models:
**(Important information) - Installation and pump suitability checks must be carried out by a fully qualified technician**
BAXI
105 HE A INSTANT, COMBI 105E, COMBI 105HE, COMBI INSTANT 105 E, COMBI INSTANT 105E HE, COMBI INSTANT 80E HE, DUO TEC 24 HE, DUO TEC 24 HE A , DUO TEC 28 HE, DUO TEC 28 HE A, DUO TEC 33 HE, DUO TEC 33 HE A, DUO TEC 40 HE, DUO TEC 40 HE A , 15 HE SYSTEM, 18 HE SYSTEM, 24 HE SYSTEM , 28 HE SYSTEM, 32 HE SYSTEM, MEGAFLO 15 HE A, MEGAFLO 18 HE A, MEGAFLO 24 HE A, MEGAFLO 28 HE A, MEGAFLO 32 HE A, COMBI 24 HE, COMBI 28 HE, COMBI 33 HE, PLATINUM COMBI 24 HE A , PLATINUM COMBI 28 HE A , PLATINUM COMBI 33 HE, PLATINUM COMBI 33 HE A, PLATINUM COMBI 40 HE, PLATINUM COMBI 40 HE A , SYSTEM 60/100
IDEAL
Combi 24, Combi 30, Esprit ECO 24, Esprit ECO 30, i 24, i 30, i 35, I MINI 24, I MINI 30, I MINI C24, I MINI C30, +C24, +C30, +C35, INDEPENDENT C24, INDEPENDENT C30, INDEPENDENT C35, INDEPENDENT COMBI 24, INDEPENDENT COMBI 30, INDEPENDENT COMBI 35, SYSTEM 15, SYSTEM 18, SYSTEM 24, SYSTEM 30, INSTINCT COMBI 24, INSTINCT COMBI 30, 24 COMBI ESP1, 30 COMBI ESP1, 35 COMBI ESP1, LOGIC + COMBI 24, LOGIC + COMBI 30, LOGIC + COMBI 35, LOGIC + SYSTEM 15, LOGIC + SYSTEM 18, LOGIC + SYSTEM 24, LOGIC + SYSTEM 30, LOGIC CODE COMBI 26, LOGIC CODE COMBI 33, LOGIC CODE COMBI 38, LOGIC COMBI 24, LOGIC COMBI 30, LOGIC COMBI 35, LOGIC SYSTEM 15, LOGIC SYSTEM 18, LOGIC SYSTEM 24, LOGIC SYSTEM 30, SYSTEM 15 IE, SYSTEM 18IE, SYSTEM 24 IE, SYSTEM 30 IE, PROCOMBI EXCLUSIVE 24, PROCOMBI EXCLUSIVE 30, PROCOMBI EXCLUSIVE 35, ULTRA + SYSTEM 15, ULTRA + SYSTEM 18, ULTRA + SYSTEM 24, ULTRA + SYSTEM 30, ULTRA COMBI 30, ULTRA COMBI 35
KESTON
C30 COMBI, C35 COMBI, COMBI 30, COMBI 35, SYSTEM 30, SYSTEM S 30
MORCO
GB24 (SERIES 1, SERIES 11), GB30 (SERIES 1, SERIES 11)
POTTERTON
GOLD 24 HE, GOLD 28 HE, GOLD 30 HE, PERFORMA 24 ECO HE, PERFORMA 24I ECO HE, PERFORMA 28, PERFORMA 28I, PERFORMA 30 HE, PERFORMA SYSTEM 12HE, PERFORMA SYSTEM 18HE, PERFORMA SYSTEM 24HE, PERFORMA SYSTEM 28E, PERFORMA SYSTEM 28HE, PROMAX COMBI 28 HE PLUS SL, PROMAX COMBI 33 HE PLUS, PROMAX HE PLUS SYSTEM
VAILLANT
ECOTEC PLUS 612 VU 126/5-5 A R4, ECOTEC PLUS 615 VU 156/5-5 A R4, ECOTEC PLUS 618 VU 186/5-5 A R4, ECOTEC PLUS 624 VU 246/5-5 A R4, ECOTEC PLUS 630 VU 306/5-5 A R4, ECOTEC PLUS 825 VUW 256/5-5 R4, ECOTEC PLUS 832 VUW 326/5-5 R4, ECOTEC PLUS 835 VUW 356/5-5 R4, ECOTEC PRO 22 VU 226/5-3 A R4, ECOTEC PRO 24 VUW 246/5-3 R4, ECOTEC PRO 28 VUW 286/5-3 R4, ECOTEC PRO 30 VUW 306/5-3 R4
ZANUSSI
ULTRA + COMBI 30, ULTRA + COMBI 35
FAQ advisory: generally suitable for use as circulation pump for radiators and hot water cylinder, with no more than 14 radiators advised.
This product is designed to be compatible with the specified brand(s) and is not the original part. The name, model names and any part numbers of the original manufacturer(s) have been used for reference purposes only and are in no way associated with the original parts or manufacturer.
