22mm Straight Automatic Bypass Valve ABV Auto Boiler TRV Radiator Pressure (50L p/m)
by SPARES2GO
£14.39
**Free Tracked Shipping**

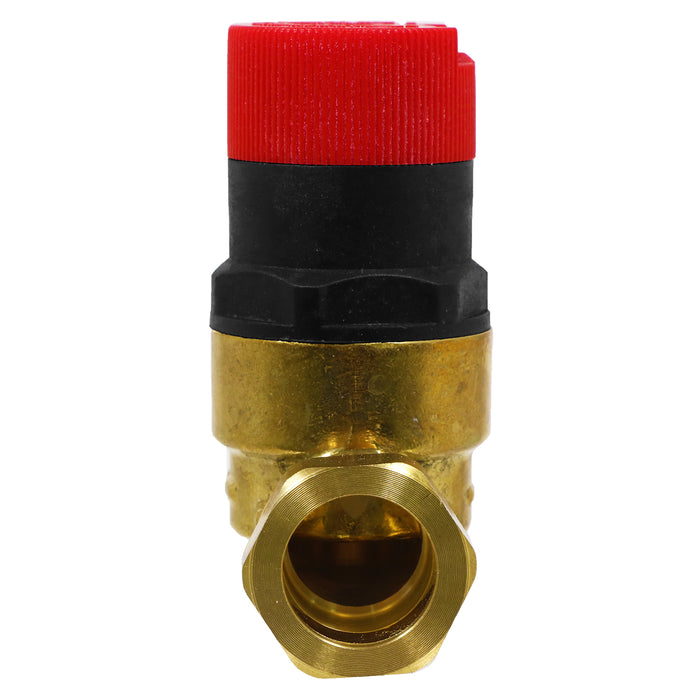

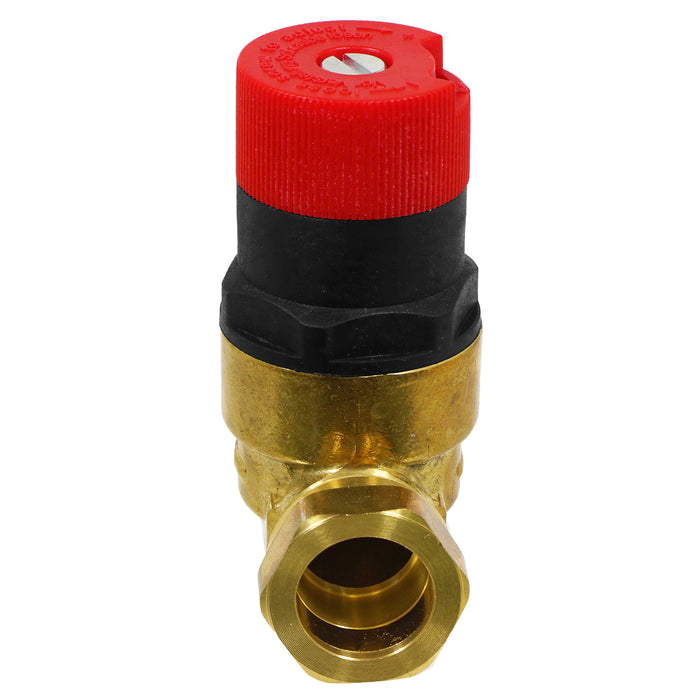

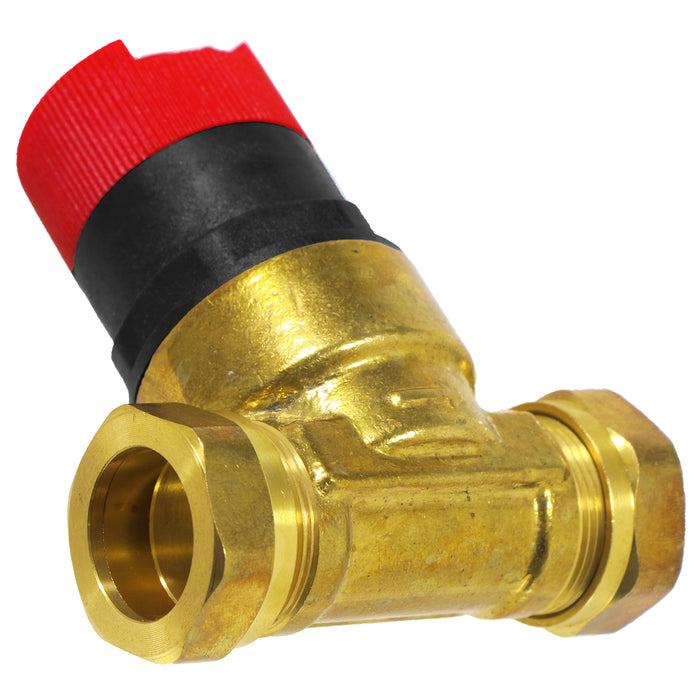

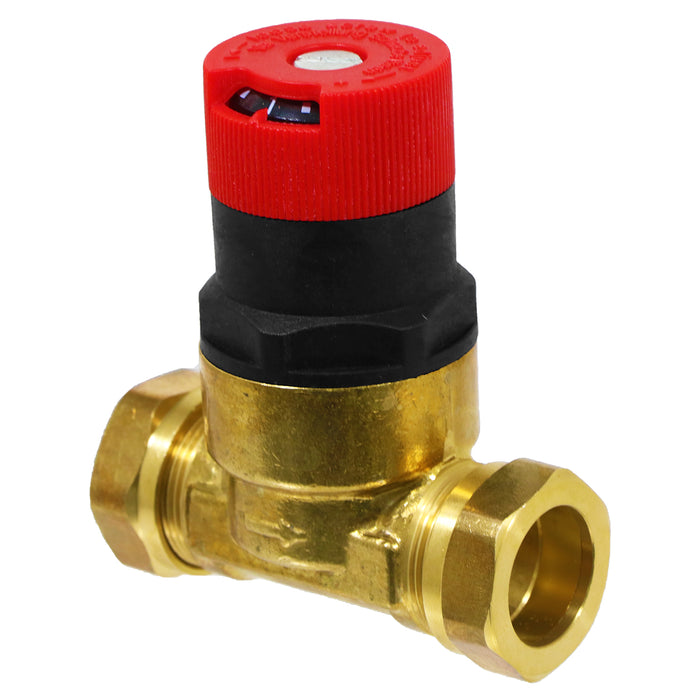

22mm Straight Automatic Bypass Valve
Brand new, premium quality 22mm straight automatic bypass valve, for installation in systems where a boiler bypass is required - typically when a system is equipped with thermostatic radiator vaIves (TRV's), and to allow pump overrun operation after zone valves have closed down. When correctly set, this valve will regulate system pressure, thereby reducing system noise, pump impeller wear and enhance boiler heat exchanger life by ensuring minimum flow rate at all times.
Specifications:
High capacity flow up to 50 litres per minute
Wide differential pressure range 0.1 bar to 0.6 bar

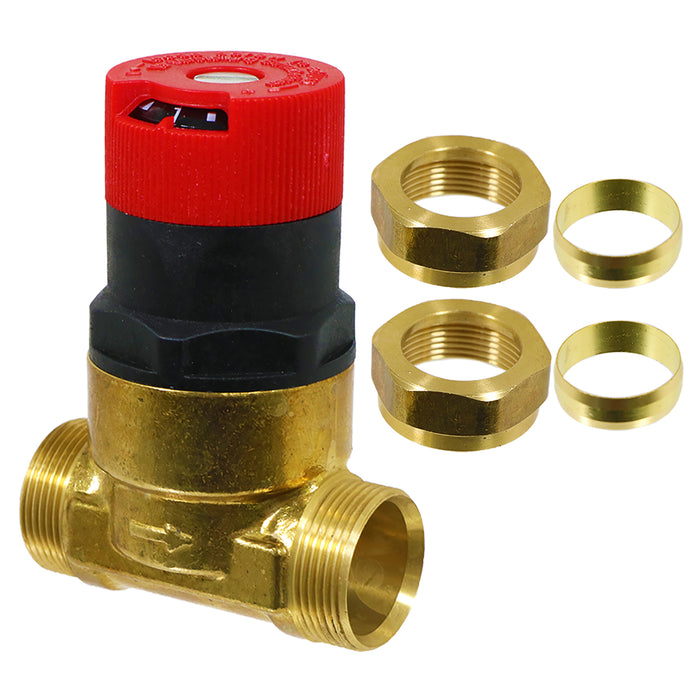

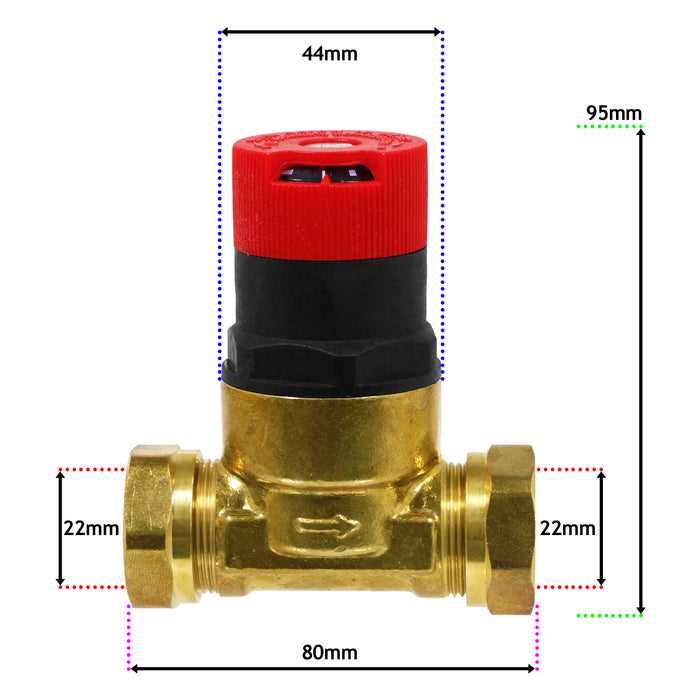

22mm Compression fittings
Reduces system noise
Maintains an even system pressure
Constant flow through boiler
Lockable set pressure

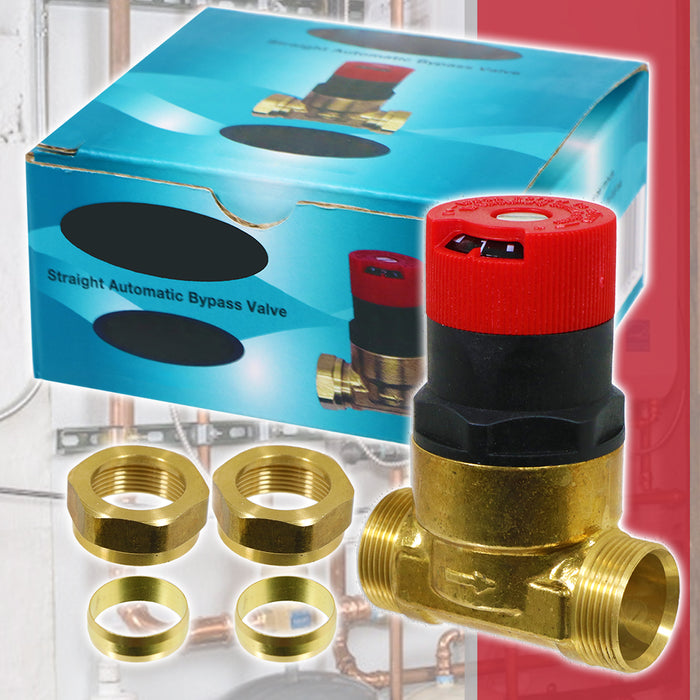

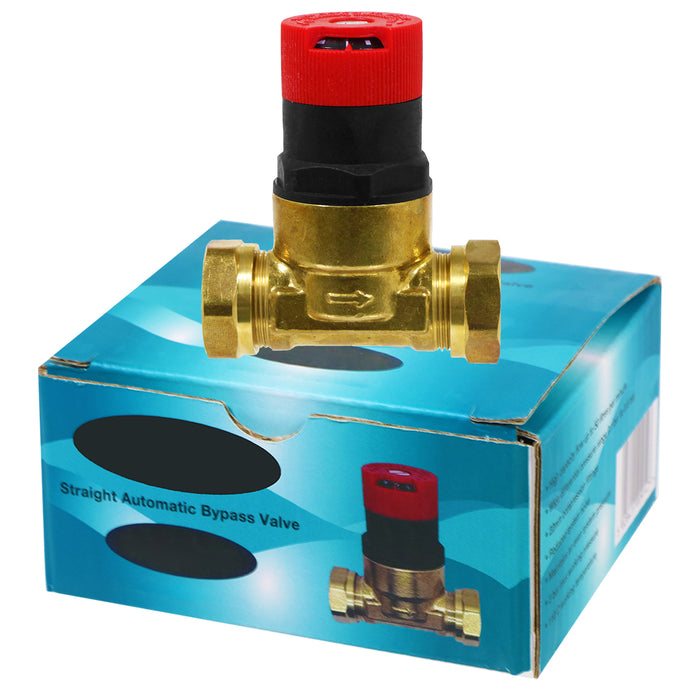

Arrives boxed
Installation:

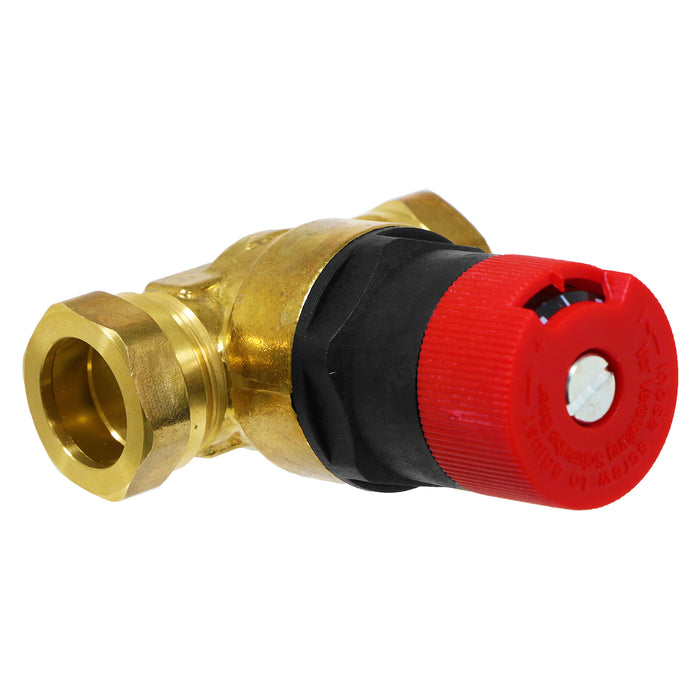

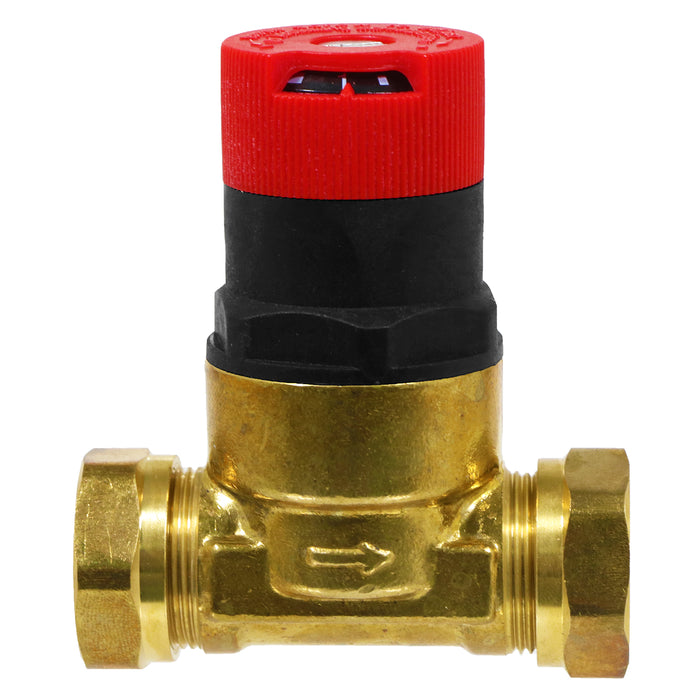

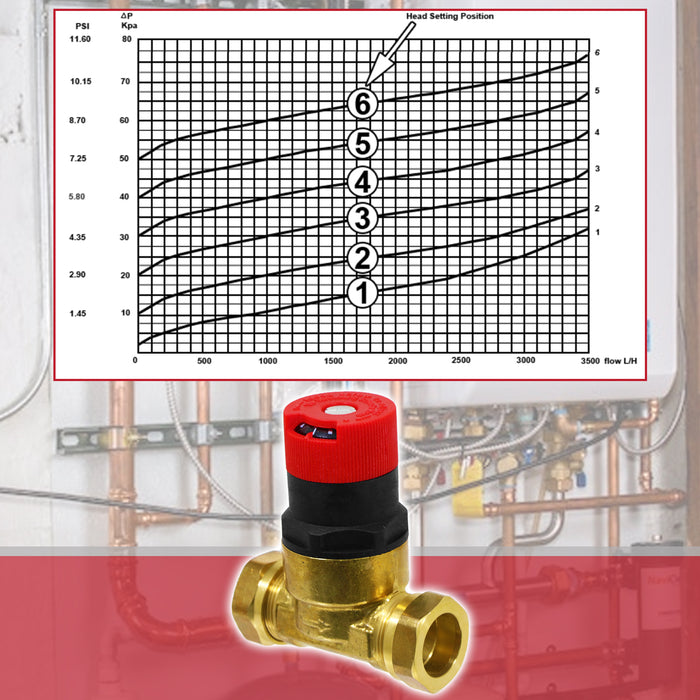

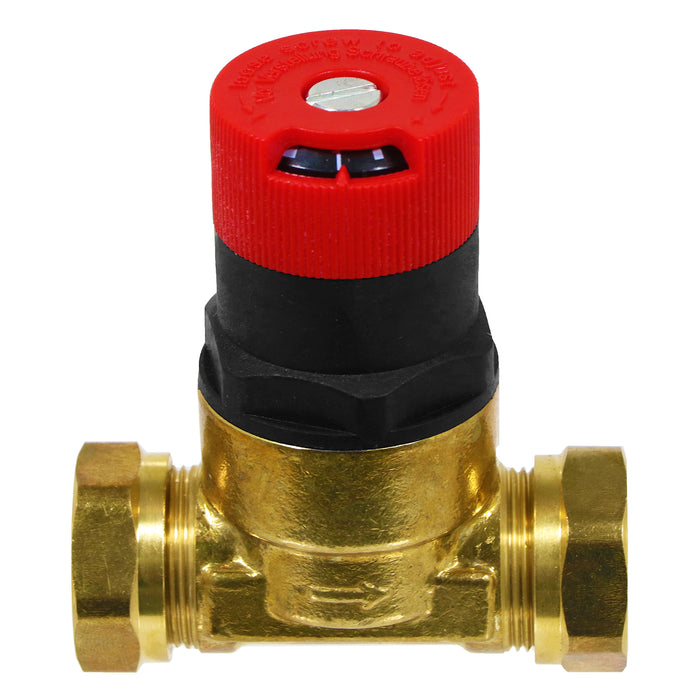

Installation should be in a loop between flow and return after the pump. Ensure that the flow is in the direction of the arrow on the valve body. Rotate the adjustment head until the required setting number is visible, and lock the valve at that point by tightening the screw on top of the adjuster. Refer to recommendations in the boiler instructions and the pressure /flow rates detailed in the above product images to see which setting is required.
This valve should be fitted where a boiler bypass is required. Typically this is the case when a system is equipped with thermostatic radiator vaIves (TRV's), and to allow pump overrun operation after zone valves have closed down. TRV's slowly close down as each radiator raises the room temperature. To overcome flow restriction as TRV's close down, the valve is adjusted to the required set point. As the system resistance increases due to TRV's closing, the valve allows flow to Increase in order to maintain the required pre-set system differential pressure . The regulation provided will reduce system noise that can result from TRV's or zone valves closing, eliminate pump impeller wear that can result from high flow resistance and enhance the life of the boiler's heat exchanger by ensuring minimum flow rate at all times.
Brand new, premium quality 22mm straight automatic bypass valve, for installation in systems where a boiler bypass is required - typically when a system is equipped with thermostatic radiator vaIves (TRV's), and to allow pump overrun operation after zone valves have closed down. When correctly set, this valve will regulate system pressure, thereby reducing system noise, pump impeller wear and enhance boiler heat exchanger life by ensuring minimum flow rate at all times.
Specifications:
High capacity flow up to 50 litres per minute
Wide differential pressure range 0.1 bar to 0.6 bar
22mm Compression fittings
Reduces system noise
Maintains an even system pressure
Constant flow through boiler
Lockable set pressure
Arrives boxed
Installation:
Installation should be in a loop between flow and return after the pump. Ensure that the flow is in the direction of the arrow on the valve body. Rotate the adjustment head until the required setting number is visible, and lock the valve at that point by tightening the screw on top of the adjuster. Refer to recommendations in the boiler instructions and the pressure /flow rates detailed in the above product images to see which setting is required.
This valve should be fitted where a boiler bypass is required. Typically this is the case when a system is equipped with thermostatic radiator vaIves (TRV's), and to allow pump overrun operation after zone valves have closed down. TRV's slowly close down as each radiator raises the room temperature. To overcome flow restriction as TRV's close down, the valve is adjusted to the required set point. As the system resistance increases due to TRV's closing, the valve allows flow to Increase in order to maintain the required pre-set system differential pressure . The regulation provided will reduce system noise that can result from TRV's or zone valves closing, eliminate pump impeller wear that can result from high flow resistance and enhance the life of the boiler's heat exchanger by ensuring minimum flow rate at all times.
